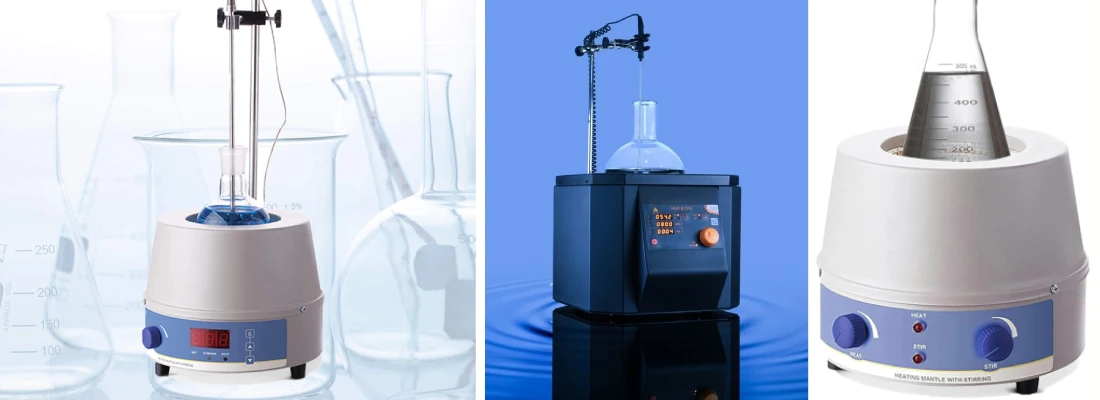

what is laboratory heating mantle

The Heating Mantle, also known as a Mantle Hotplate, is a vital and efficient tool in chemical and biological laboratory environments. With a standard capacity of 1000 ml, it is responsible for uniform heat transfer and the agitation of compounds. Unlike traditional methods that utilize open flames, this device significantly enhances safety when working with sensitive and flammable organic solutions by creating a controlled heating environment. Its design ensures that the chemical vessel is securely cradled within the cavity, eliminating the risk of thermal shock or explosions caused by direct heat. Consequently, it is the premier choice for processes requiring constant and stable temperatures.

History and the Necessity of the Heating Mantle

The origins of the heating mantle date back to 1943 in the United Kingdom. During this time, the urgent need for a secure method of heating in sensitive chemical processes led to this transformative invention. Prior to this technology, working with high temperatures in laboratories always carried severe threats, such as explosions or fires caused by direct flames. The ingenious design of this device provided a standard and reliable alternative to hazardous tools like Bunsen burners and water baths (Bain-marie). In fact, the invention of the mantle not only increased reaction precision but also completely revolutionized workplace safety standards by eliminating the risk of hot liquid splashes and severe burns, prioritizing the health of researchers.

Internal Structure and Components of a Heating Mantle

1. Heating Element

The core and heating driver of this device is a system composed of alloy filaments with high electrical resistance, such as Nichrome (Nickel-Chromium). These heating coils are engineered to convert electrical current into thermal energy with minimal loss. The grid-like arrangement of these elements within the device guarantees symmetrical temperature distribution across all points of the laboratory vessel.

2. Protective Layer and Refractory Insulation

To optimize energy consumption and prevent heat loss, the elements are surrounded by a dense coating of ceramic fibers or laboratory-grade glass wool. This fireproof texture not only protects the outer casing from overheating but also creates an isolated chamber that prevents sudden thermal shocks to the solution.

3. Outer Casing and Body

The external structure of these units is typically constructed from durable materials such as steel sheets with electrostatic powder coating or anodized aluminum. Choosing these materials, in addition to giving the device a modern appearance, maximizes the body's resistance to chemical corrosion and potential impacts within the laboratory environment.

4. Temperature Management and Control System

Precision in chemical reactions is owed to the controller unit, designed in both analog (dial-operated) and digital models. This section allows the operator to monitor the thermal status accurately and adjust the required temperature with high sensitivity. In advanced models, LCD screens enable real-time monitoring of the process.

5. Hemispherical Heating Cavity

The interior design of the heating mantle precisely matches the ergonomics of round-bottom flasks. This circular indentation ensures maximum contact between the vessel and the heat source, resulting in increased heating efficiency and a significant reduction in the time required for the solution to reach its boiling point.

6. Chassis and Supporting Base

To maintain balance and stability during long-term processes, the device is equipped with anti-slip feet or a sturdy supporting body. This feature ensures the safety of the device on the workbench, particularly when using bulky and heavy flasks, preventing potential tipping.

Operational Mechanism and Maintenance

The primary mechanism of the heating mantle is based on converting alternating current (AC) into thermal potential; simply put, this device acts as an electrical-to-thermal energy converter. Since reaching high operational temperatures requires significant power consumption, connecting them directly to standard building outlets can cause sudden pressure on the electrical grid, blown fuses, or damage to the device's sockets. Therefore, laboratory equipment experts strongly recommend using a transformer or stabilizer to regulate the input voltage. Heat intensity is managed via a "rheostat" or variable resistor. Furthermore, due to "thermal inertia" and the time required to reach the ideal temperature, it is best to turn the device on a few minutes before starting the actual experiment to establish the necessary thermal stability within the cavity.

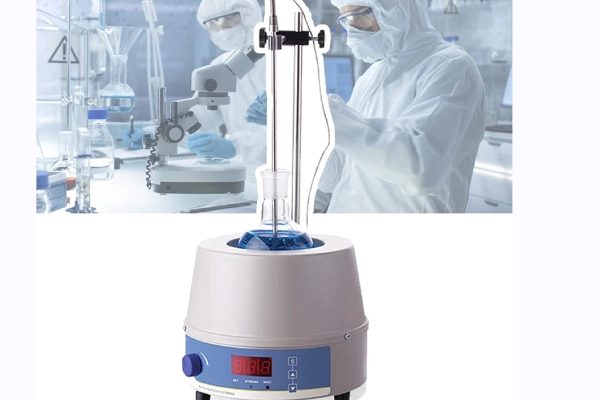

Types of Heating Mantles

Diversity in design allows specialists to choose the most efficient option based on project dimensions, reaction sensitivity, and available laboratory space. The most common types include:

Single-Position Systems: The most popular model in educational and research centers, designed to host a single round-bottom flask.

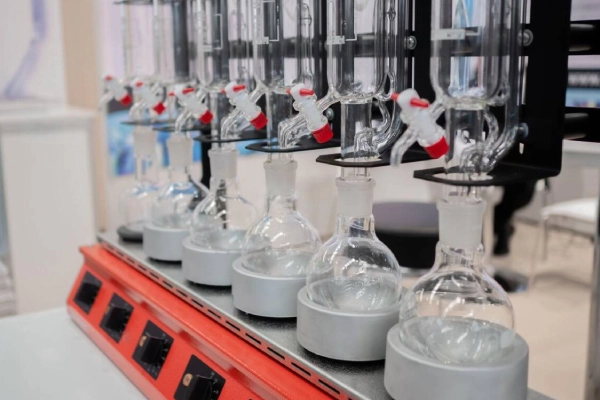

Multi-Position Packages: Essential for high-traffic environments, allowing several independent experiments to be conducted simultaneously in a single unit.

Digital Intelligent Generation: Utilizing precise processors for real-time thermal monitoring on dedicated displays, often equipped with auto-shutoff and safety alarms.

Integrated Thermal-Magnetic Systems: These advanced units combine heating with Magnetic Stirring, eliminating the need for auxiliary equipment and ensuring solution uniformity.

External Controller Models: Used in ultra-sensitive projects where data logging or connection to automation systems is required, separating the control panel from the heating body for increased precision and safety.

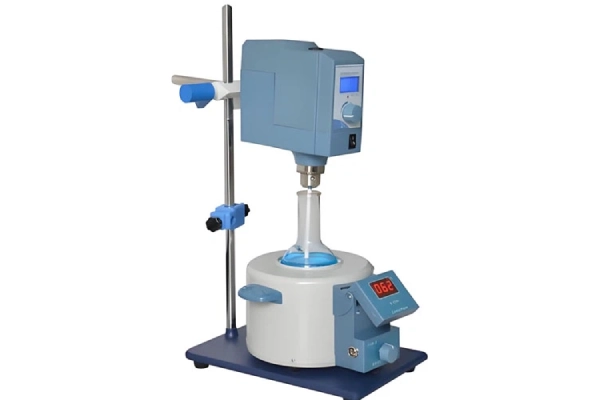

The Necessity of Using Heating Mantles in the Laboratory

Utilizing heating mantles in sensitive laboratory processes offers numerous advantages in terms of safety and efficiency. A key feature is their ergonomic design and portability, which provides high flexibility to the workspace. Unlike traditional methods, the uniform heat distribution minimizes the risk of thermal shock and the breakage of glassware. Most importantly, it provides a high level of security when working with flammable chemical compounds; the insulation layers between the heat source and the vessel act as a powerful safety barrier, drastically reducing fire hazards.

Key Applications of Thermal Mantles

These units play a pivotal role in complex laboratory procedures such as material synthesis, distillation, and the extraction of botanical or chemical essences. A vital capability is "thermal stabilization," maintaining sensitive solutions at a precise temperature for extended periods. They are the unrivaled choice for heating volatile solvents and organic materials where the slightest spark could result in disaster, making them the first priority in Quality Control (QC) and R&D laboratories.
